High Speed Solventless Base Laminating Machine for Aluminum Foil in 500 Mpm

Application and Features

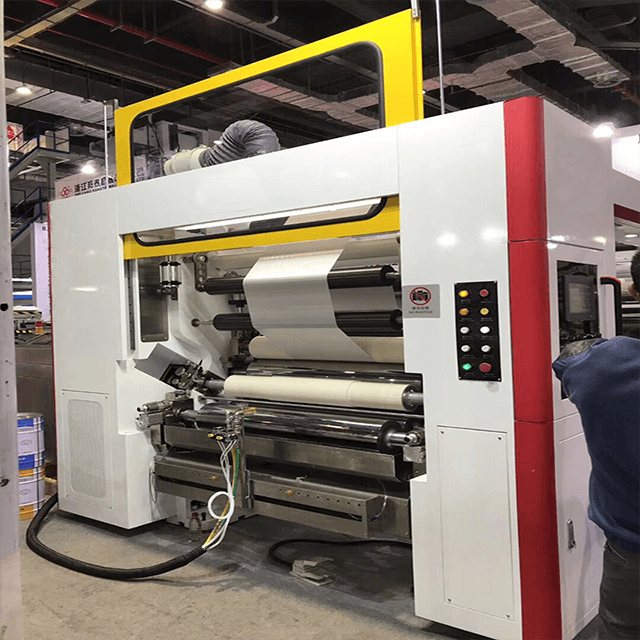

GF-A model Solventless Laminating Machine is a product researched and developed by our company combined with the gradually matured solvent-free laminating technology.
It's based on the characteristics of the solvent-free laminating process itself, especially the problems such as low initial adhesion and difficult to control the amount of glue. In order to solve such key problems, many targeted innovations have been carried out in our machine including the mechanical structure, control methods, safety protection and appearance design.
It is suitable for high-speed lamination of different types of films, paper and aluminum foils. It has the advantages of high efficiency, good performance and solvent residue-free.

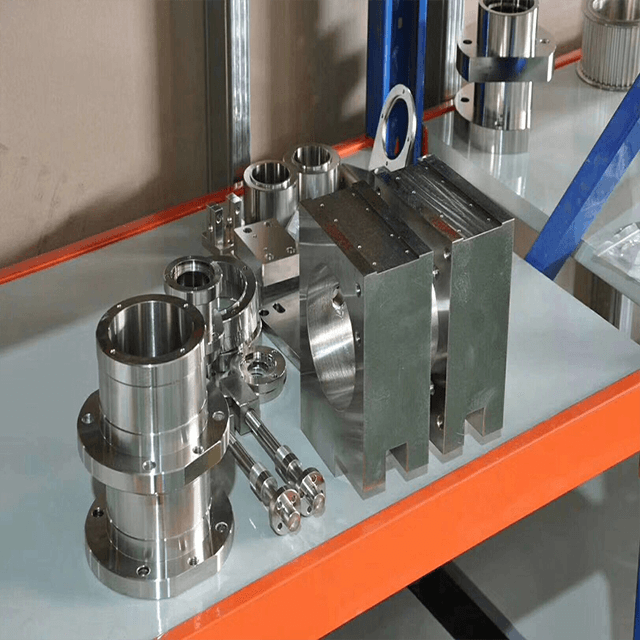

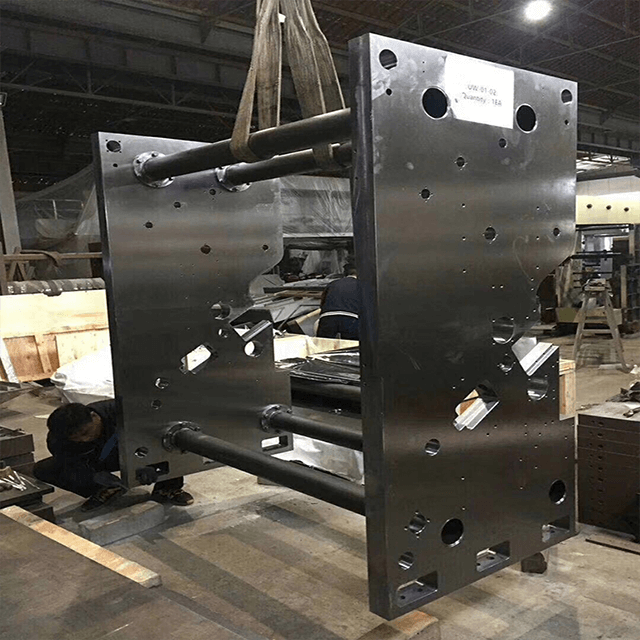

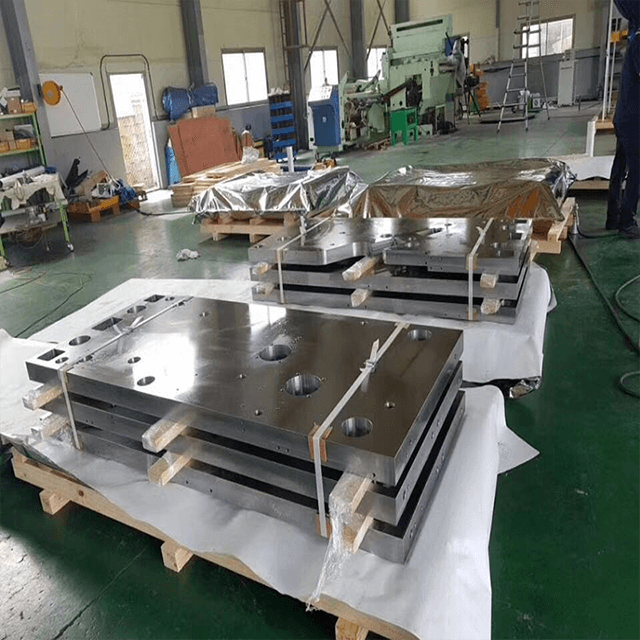

The full set of technical drawings was completed by Korean technical team which is led by Mr.Shaun Youn, the assembly work of the whole machine was led by Korean assembly technician team and mutually completed with the efforts of our domestic technical team. Wallboards and 90% machine parts were imported from Korea and Japan. It is currently the most advanced and fastest solventless laminating machine in China.

Main Technical Parameters

• Printing      Material's way                                                   Left      to right

• Mechanical      Speed                                                        580m/min

• Max Laminating Speed                                                    500m/min

(The max. production speed will be affected by the quality and properties of substrate and adhesive used)

• Max      coating width                                                         1050mm

• Max      roll width                                                            1050mm

• Min      roll width                                                             400mm

• Max unwind diameter                                                     Ø1000mm

• Max rewind diameter                                                Ø1000mm

• Unwind      paper core                                          3''=76mm      and 6''=152mm

• Rewind      paper core                                          3''=76mm      and 6''=152mm

• Unwind      tension range                                           3--40kg(400NM)

• Rewind      tension range                                                4--55kg(550NM)

• Rewind      tape tension setting range                                          100%--60%

• Max      roll's weight                                                           1,000kg

• Range      of coating amount                                                    0.8-3gsm

• Dimension                                                     5100*3600*2500mm

• Power                                                                      53kw

• Weight                                                                  14000kg

• Machine's      color                                             Ivory      white (as per buyers)
