Gwasy-B1 3 Motor System 8 Color Gravure Printing Machine for Film in 160m/Min
Application and Features
This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of medium grade print.
1. Unwind and Rewind: Built-in double location with double arm and double station, Flatulence axis loading and unloading, unwinding double magnetic powder and the rewinding double torque motor, change fast, safe and reliable, Automatic cutting, high-speed non-stop change materials.

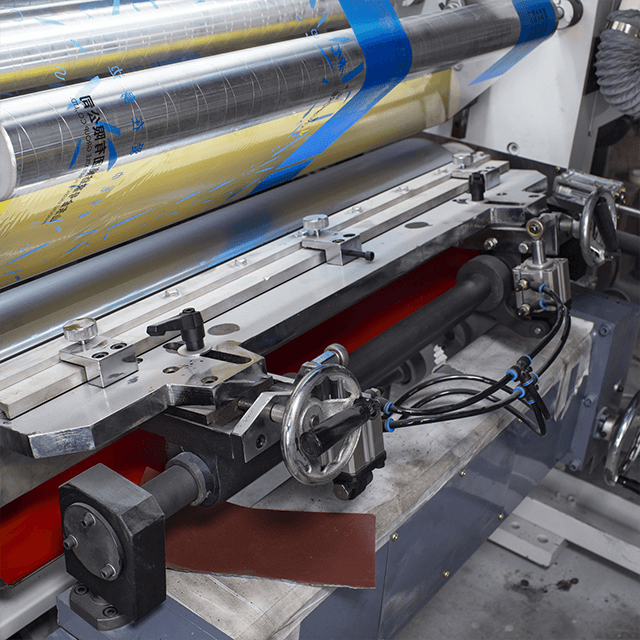

2. Printing: Vertical register system, high precision and less waste. Doctor blade plays with double-axis. Drive by independent motor
3. Dry oven: Patent technology, low consumption oven, high wind pressure high efficiency and energy saving system, several return air road, saves energy
4. Control: With the Siemens PLC control, YASKAWA frequency converter, three motor tension control system, main components are imported brand
|
Main Technical Parameters |
||||
|
Model |
GWASY-600B1 |
GWASY-800B1 |
GWASY-1000B1 |
GWASY-1200B1 |
|
Printing colors |
8 (user can increase or decrease) |
|||
|
Diameter of printing cylinder |
100-320mm |
|||
|
Max. Printing width |
600mm |
800mm |
1000mm |
1200mm |
|
Diameter of unwind/rewind |
600mm |
|||
|
Machine printing speed |
180m/min |
|||
|
Max. Printing speed |
160m/min |
|||
|
Register precision |
±0.1mm |
|||
|
Drying method |
Electric heating and steam heating or oil heating |
|||
|
Total power |
100kw |
120kw |
130kw |
140kw |
|
Weight of machine |
15000KG |
16000KG |
17000KG |
18000KG |
|
Overall dimension |
13500*2500*2610mm |
13500*2700*2610mm |
13500*2900*2610mm |
13500*3100*2610mm |
