High Speed 7 Motor 8 Color Gravure Printing Machine in 180 Mpm
1. This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.

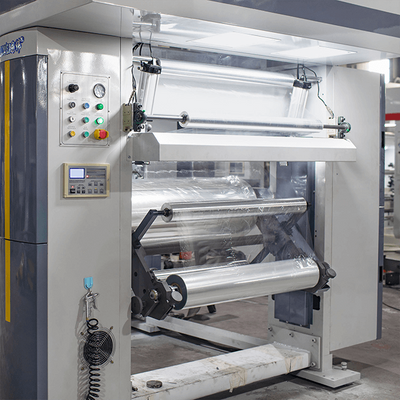

2. Unwind and Rewind: Unwinding fixed singlestation, Rewind double- station, Air shaft loading and unloading, replacement fast secure and reliable.

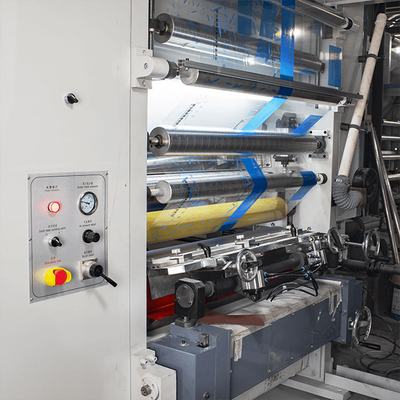

3. Printing: Vertical register system, high precision and less waste. Doctor blade plays with double-axis. Driven by independent motor.
4. Dry oven: Patent technology, Oven using high temperature axial fans built-in heating.
5. Control: With the Siemens PLC control, YASKAWA frequency converter, seven motor tension control system, main components are imported brand
Product Name |
7 motor system High speed Gravure Printing Machine |
Printing Material |
BOPP, PET, PVC, PE, aluminum foil and roll paper |
Color |
Multicolor 8 (user can increase or decrease from 1-13) |
Max. Printing width |
600mm, 800mm, 1000mm, 1100mm, 1200mm |
Max. Printing Speed |
180 m/min |
Diameter of printing cylinder |
100-320 mm |
Drying method |
Electic heating and steam heating or oil heating |
Condition |
New |
Register precision |
+-0.1mm |
