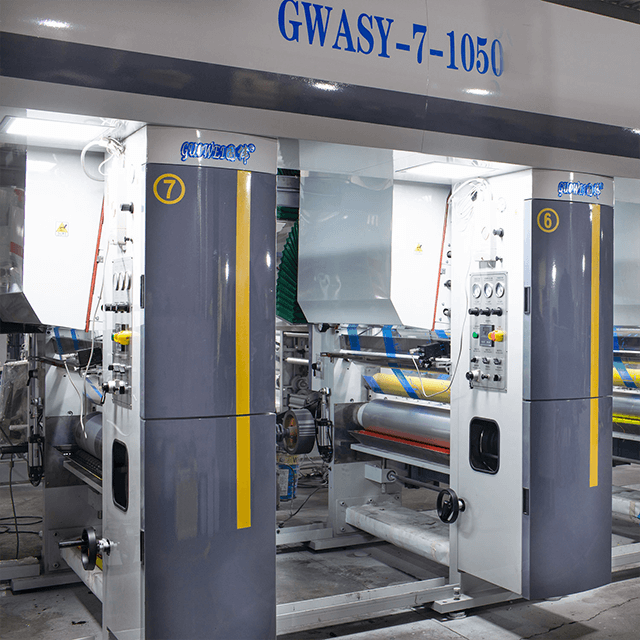

GWASY-A High Speed 7 Motor system 8 Color Gravure Printing Machine in 180 mpm (unwind & rewind outside type)

Inquire

Model:

Product Description

Application and Features
1. This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.

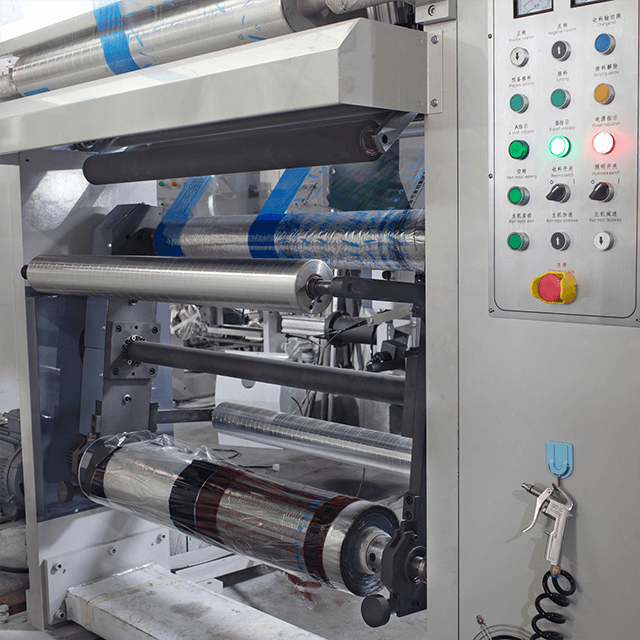

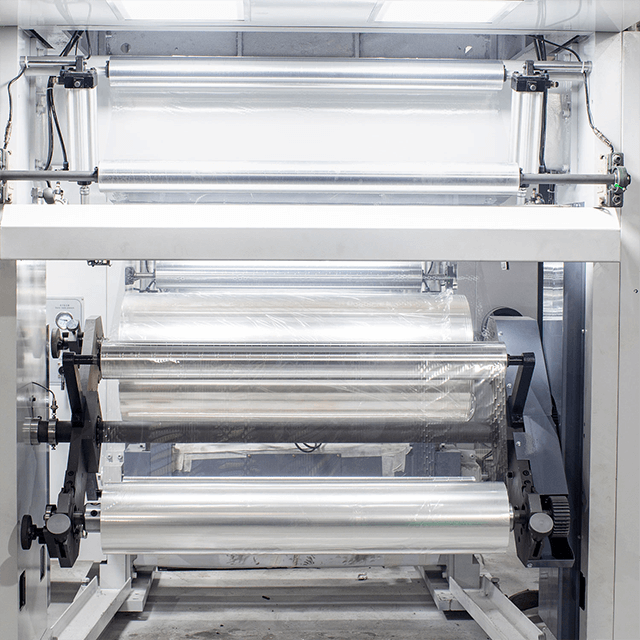

2. Unwind and Rewind: Unwinding fixed singlestation, Rewind double- station, Air shaft loading and unloading, replacement fast secure and reliable.

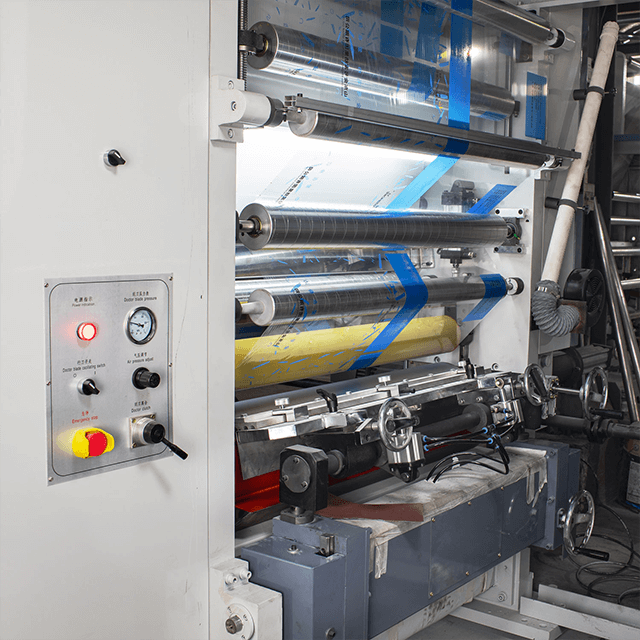

3. Printing: Vertical register system, high precision and less waste. Doctor blade plays with double-axis. Driven by independent motor.

4. Dry oven: Patent technology, Oven using high temperature axial fans built-in heating.
5. Control: With the Siemens PLC control, YASKAWA frequency converter, seven motor tension control system, main components are imported brand

Product Name	7 motor system High speed Gravure Printing Machine
Printing Material	BOPP, PET, PVC, PE, aluminum foil and roll paper
Color	Multicolor 8 (user can increase or decrease from 1-13)
Max. Printing width	600mm, 800mm, 1000mm, 1100mm, 1200mm
Max. Printing Speed	180 m/min
Diameter of printing cylinder	100-320 mm
Drying method	Electic heating and steam heating or oil heating
Condition	New
Register precision	+-0.1mm
