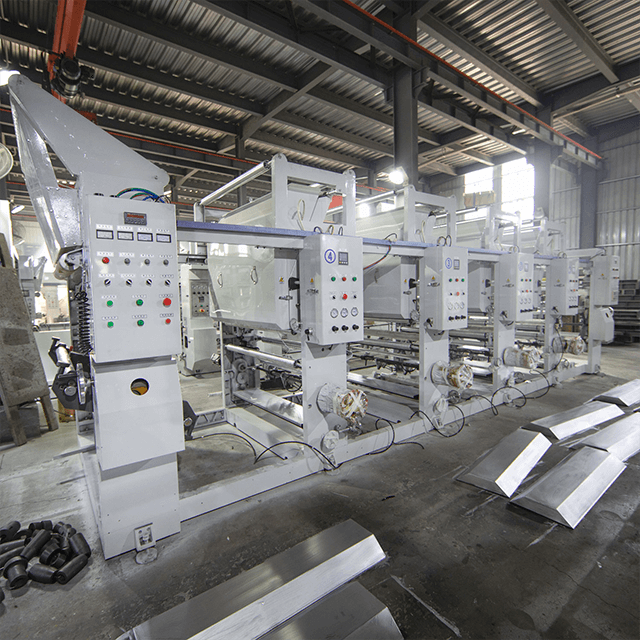

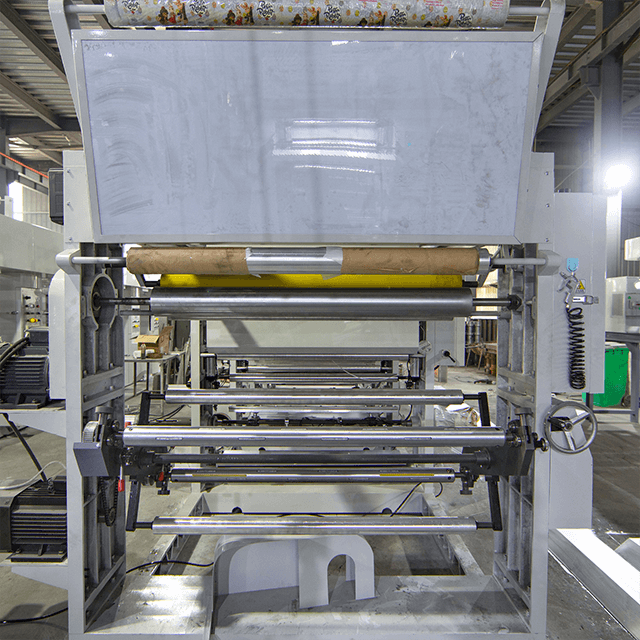

ASY-B Shaftless Type Gravure Printing Machine for Plastic Film in 70 Mpm
Application Features
This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of medium grade print.
1. Unwind and Rewind:Tilting the double location,receiving and replacing material without stopping the machine
2. Printing:360 degrees adjustment gear box, with guide roller fine-tuning Don't stop registration devicemovable type doctor blade,transverse reciprocating motion(optional pressure roller blades and all adopt pneumatic)
3. Dry oven:Double oven, conjoined twins oven(adopted the company patent technology), centrifugal big fan
|
Main Technical Parameters |
||||
|
Model |
ASY-600B |
ASY-800B |
ASY-1000B |
ASY-1200B |
|
Printing colors |
6 (user can increase or decrease) |
|||
|
Diameter of printing cylinder |
100-320mm |
|||
|
Max.printing width |
600mm |
800mm |
1000mm |
1200mm |
|
Diameter of unwind/rewind |
500mm |
|||
|
Machine printing speed |
90m/min |
|||
|
Max.printing speed |
70m/min |
|||
|
Register precision |
±0.2mm |
|||
|
Drying method |
Electric heating and steam heating or oil heating |
|||
|
Total power |
44kw |
48kw |
54kw |
60kw |
|
Weight of machine |
5500KG |
6000KG |
6500KG |
7000KG |
|
Overall dimension |
8800*2300*2300mm |
8800*2500*2300mm |
8800*2700*2300mm |
8800*2900*2300mm |
