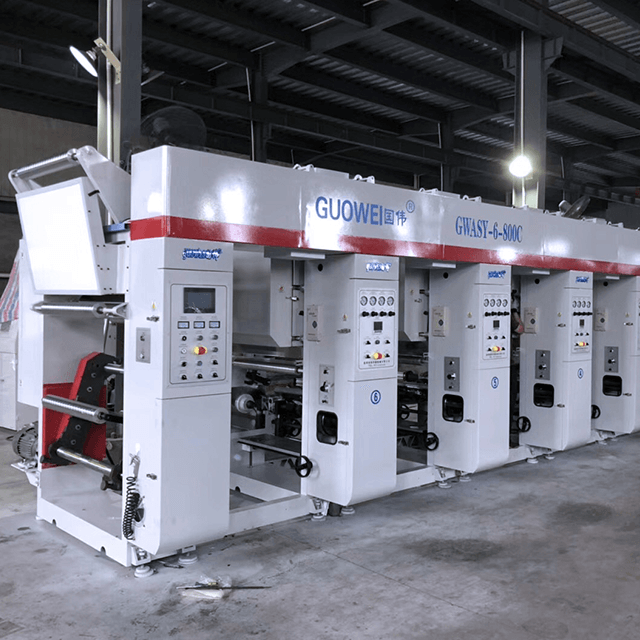

GWASY-C PLC Control High Speed 8 Color Gravure Printing Machine for Film in 140m/Min

Inquire

Model:

Product Description

Application Features

This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of medium grade print.

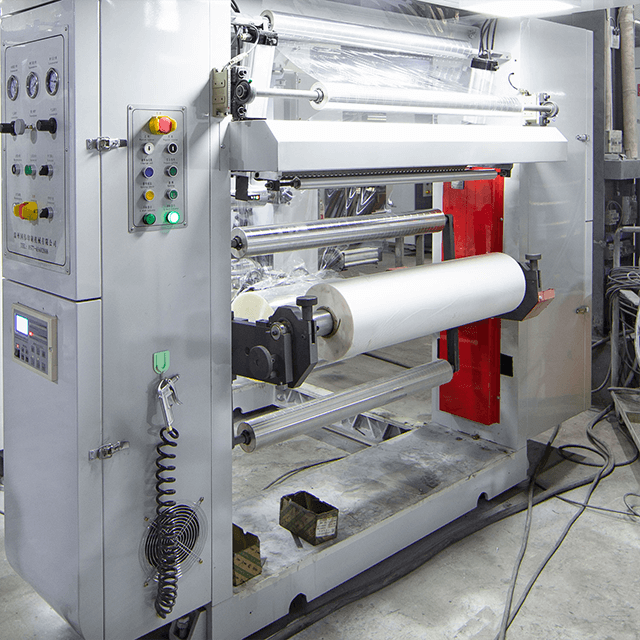

Unwind and Rewind:Built-in double location with double arm and double station ,Flatulence axis loading and unloading,unwinder automatic tension, rewinder torque motor

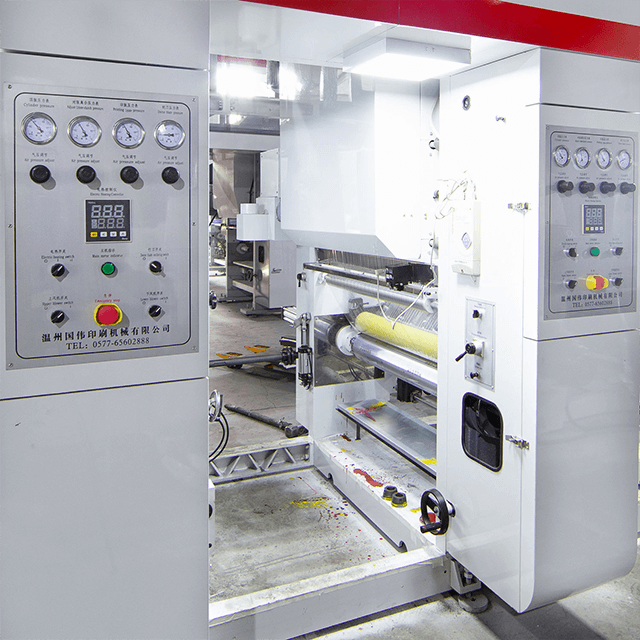

Printing: vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor

Dry oven: Patent technology,Fluctuation conjoined twins oven, large volume, high wind pressure high efficiency and energy saving system

Main Technical Parameters
Model	ASY-600C	ASY-800C	ASY-1000C	ASY-1200C
Printing colors	8 (user can increase or decrease 1-13)
Diameter of printing cylinder	100-320mm
Max.printing width	600mm	800mm	1000mm	1200mm
Diameter of unwind/rewind	600mm
Machine printing speed	160m/min
Max.printing speed	140m/min
Register precision	±0.1mm
Drying method	Electric heating and steam heating or oil heating
Total power	75kw	85kw	95kw	105kw
Weight of machine	13500KG	13000KG	14000KG	15000KG
Overall dimension	1350025002680mm	1350027002680mm	1350029002680mm	1350031002680mm
