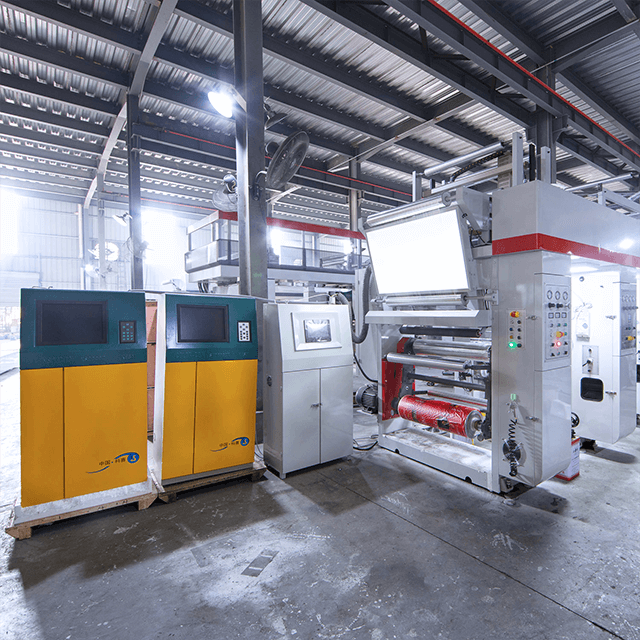

GWASY-B2 3 Motor System Computer Control Medium-Speed Plastic Film Rotogravure Printing Machine in 140 mpm

Applicable materials:
This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.


Main Structure Character:

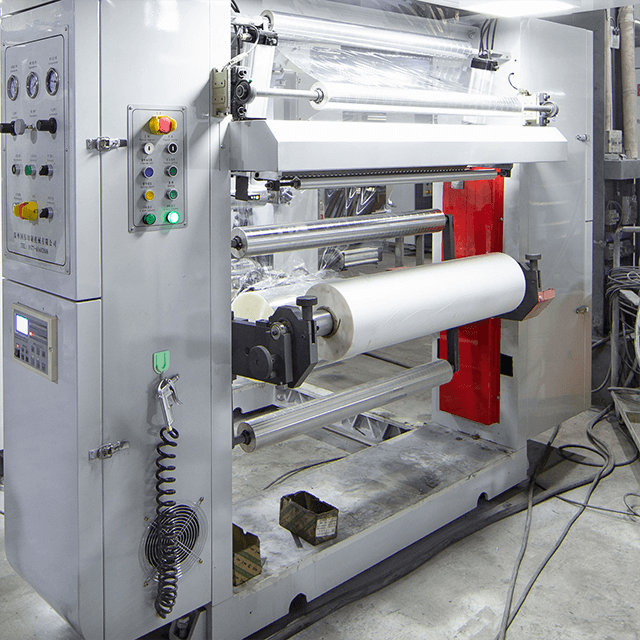

1.Unwind and Rewind:Built-in double location with double arm and double station , Flatulence axis loading and unloading,unwinding double magnetic powder and the rewinding double torque motor, change fast, safe and reliable, Automatic cutting, high-speed non-stop change materials

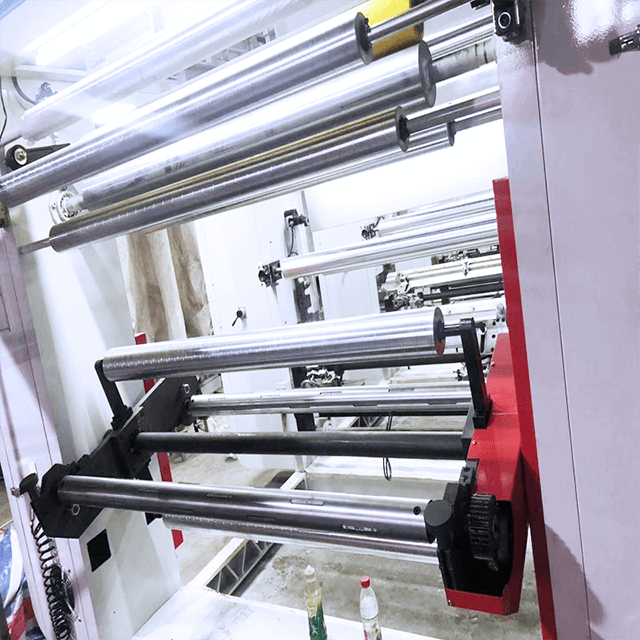

Printing: vertical register system,high precision and less waste. doctor blade plays with double-axis. drive by independent motor


2.Dry oven:Patent technology,low consumption oven,high wind pressure high efficiency and energy saving system, several return air road, saves energy


3. Control:With the Siemens PLC control, YASKAWA frequency converter, three motor tension control system,main components are imported brand


Main Technical   Parameters

Model

GWASY-600B2

GWASY-800B2

GWASY-1000B2

GWASY-1200B2

Printing colors

8   (user can increase   or decrease)

Diamter of pring cylinder

100-320mm

Max.printing width

600mm

800mm

1000mm

1200mm

diameter of unwind/rewind

600mm

Machine printing speed

160m/min

Max.printing speed

140m/min

Register precision

±0.1mm

Drying method

Electric heating and steam heating   or oil heating

Total power

80kw

90kw

100kw

110kw

Weight of machine

12000KG

13000KG

14000KG

15000KG

Overall dimension

12100*2500*2520mm

12100*2700*2520mm

12100*2900*2520mm

12100*3100*2520mm
